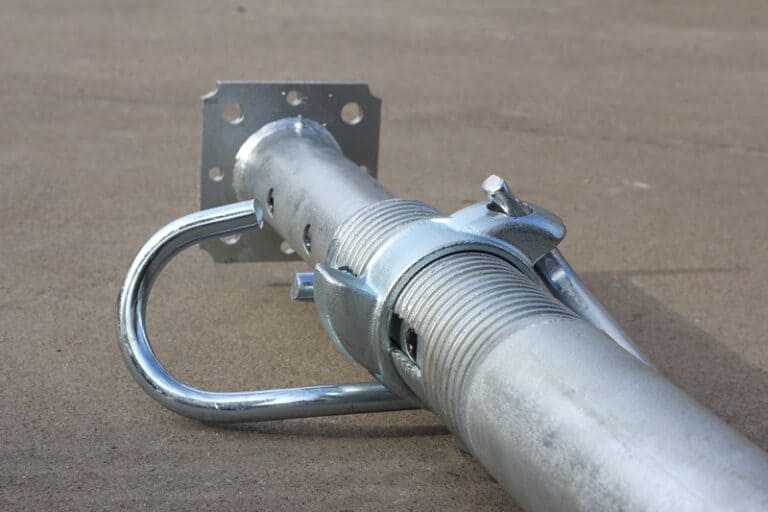

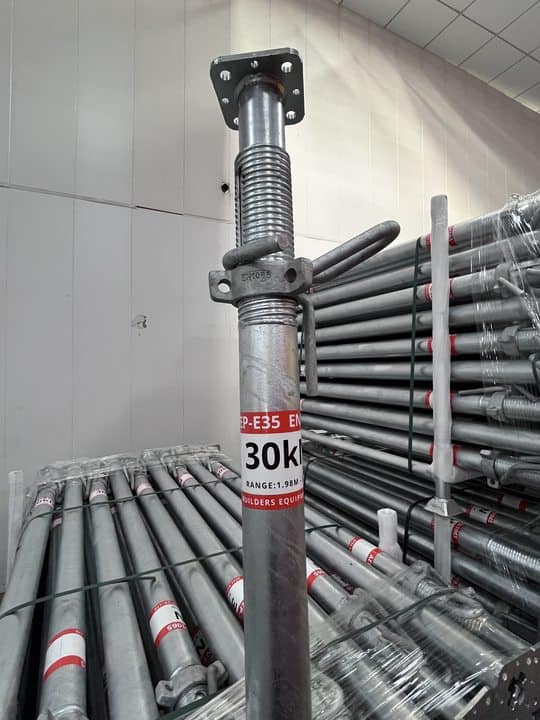

APAC Scaffold’s Heavy Duty Acrow Props are adjustable, high-load steel supports engineered to handle the demands of concrete slab and beam formwork. Manufactured to comply with DIN EN 1065 and available in multiple strength classes (B, C, D, E), these props provide consistent performance across varying heights and load requirements. Each prop comprises an inner and outer steel tube, prop nut, base plate, and either a U-head or flat head plate—available in flower or square plate shapes.
Outer and inner tubes made from high-strength steel.
A high-torque cast iron nut for quick adjustment.
A strong G-pin or collar pin to lock height settings securely.
Heavy-duty welded base and top plates.
The design includes a 100mm safety zone at the top of the inner tube to prevent hand injuries during setup. The inner tube is also constructed to prevent dislocation from the outer tube under pressure—enhancing on-site safety.
We offer various surface finishing options:
Hot dip galvanization for maximum corrosion resistance

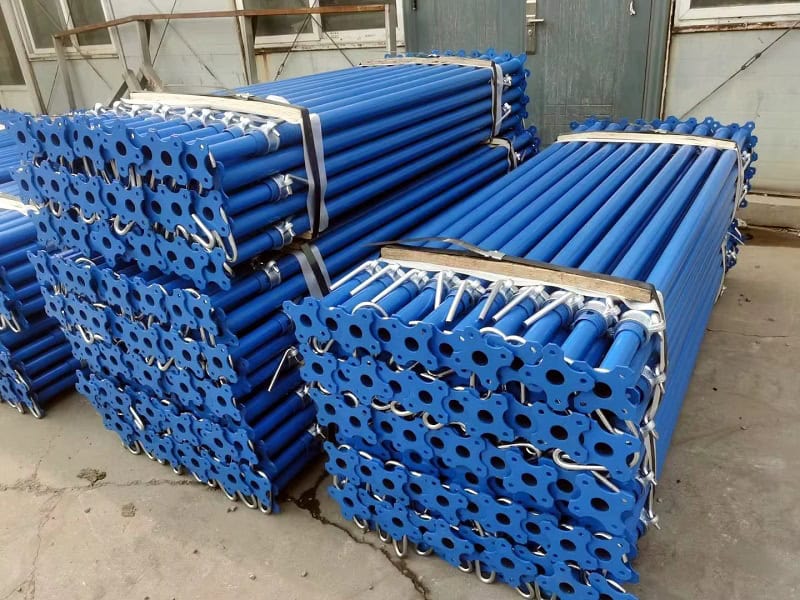

Powder coating or painted finishes for cost-effectiveness
All treatments are tested for thickness, adhesion, and longevity to ensure extended product lifespan under site conditions.
These props are fast to erect and adjust, saving up to 60% of setup time compared to traditional scaffolding methods. The ergonomic nut design enables fine-tuned height control with minimal effort, while clear class markings help site personnel quickly identify load limits.
Each adjustable shoring prop is built from:
Outer and inner tubes made from high-strength steel
Heavy-duty welded base and top plates
A high-torque cast iron nut for quick adjustment
A strong G-pin or collar pin to lock height settings securely
The design includes a 100mm safety zone at the top of the inner tube to prevent hand injuries during setup. The inner tube is also constructed to prevent dislocation from the outer tube under pressure—enhancing on-site safety.
APAC Scaffold’s heavy-duty acrow props are essential in the following areas:

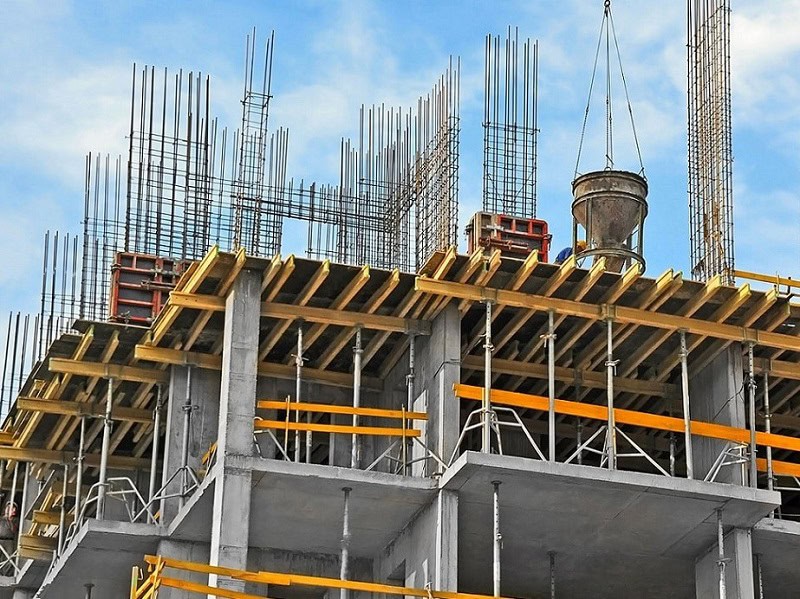

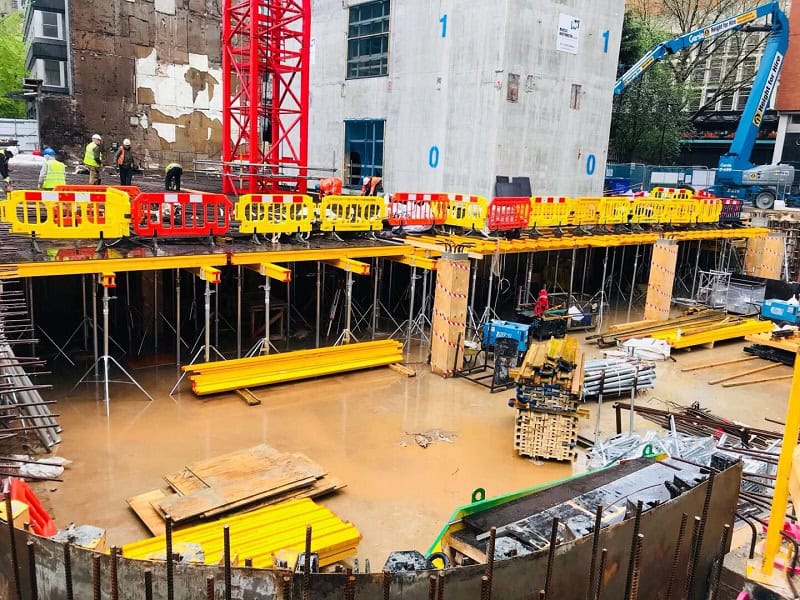

Concrete slab and beam formwork systems
Temporary wall and ceiling support (when used with strongboy attachments)

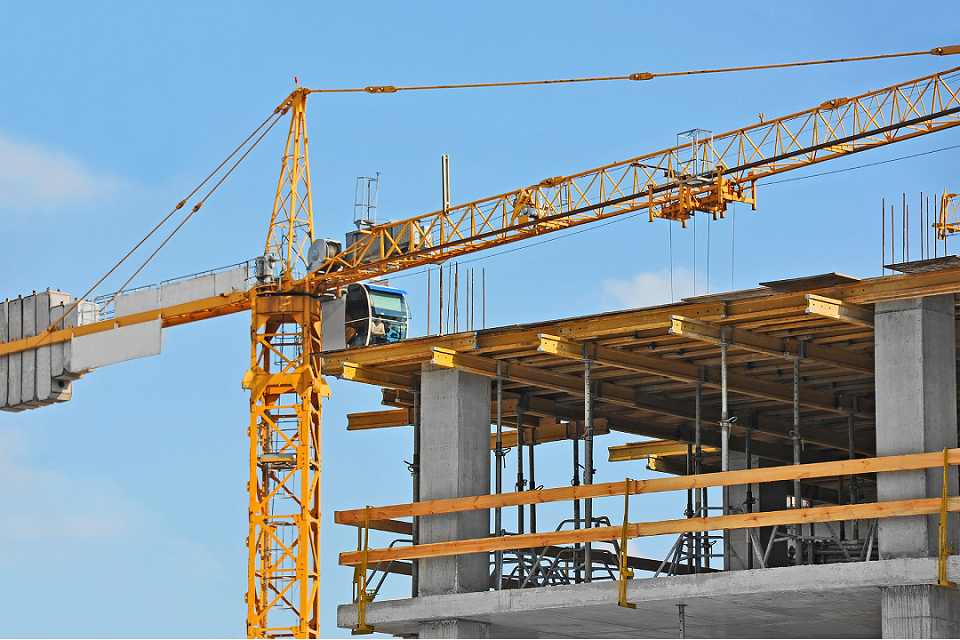

High-rise building construction
Industrial and infrastructure projects
Bridge and overpass repair works
Tunnel formworks
