Cuplock Scaffold Vertical
Cuplock Scaffold Vertical is the vertical standard in a Cuplock scaffolding system. It is the main load-bearing upright tube fitted with fixed bottom cups and movable top cups at regular intervals, allowing ledgers and transoms to be locked in place quickly to form the scaffold structure.
- It uses fixed lower cups and sliding upper cups to secure horizontal members quickly.
- The cups are welded at regular distances, which helps create standardized scaffold bays.
- Its node-point design reduces loose fittings and helps save labor time on site.
Cuplock Scaffold Vertical Specifications
APAC supplies Cuplock Scaffold Verticals in a range of standard sizes to meet different scaffold height and load requirements. Manufactured from high-quality steel, these vertical standards are designed for strong load-bearing performance, secure cup-joint connections, and repeated use in construction and formwork projects.
| Description | Material | Tube Size | Length | Surface Treatment |
|---|---|---|---|---|
| 0.50M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 500mm | Painted / Hot Dip Galvanized |
| 1.00M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 1000mm | Painted / Hot Dip Galvanized |
| 1.50M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 1500mm | Painted / Hot Dip Galvanized |
| 2.00M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 2000mm | Painted / Hot Dip Galvanized |
| 2.50M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 2500mm | Painted / Hot Dip Galvanized |
| 3.00M Cuplock Vertical | Q235 / Q355 Steel | Ø48.3 x 3.0 / 3.2mm | 3000mm | Painted / Hot Dip Galvanized |
Why Choose APAC Cuplock Scaffold Vertical
APAC supplies Cuplock Scaffold Vertical for buyers who need reliable quality, stable specifications, and practical project support. We focus on the details that matter in real B2B procurement, from raw material control and dimensional accuracy to packaging and delivery coordination.
Stable Product Quality
APAC Cuplock scaffold verticals are manufactured with strict control over steel material, welding, and dimensional consistency to help ensure secure connections and reliable performance on site.
- Consistent tube dimensions
- Reliable welding quality
- Strong and durable steel material
- Better fit-up during assembly
Factory-Direct Supply
By working with APAC, buyers get more direct access to product specifications, production follow-up, and pricing support, making procurement more efficient.
- Better cost control
- Direct production communication
- More efficient sourcing process
- Clearer quality coordination
OEM and Customization Support
Different markets have different size, finish, and packaging requirements. We support OEM and custom production to match your business needs.
- OEM branding available
- Custom sizes on request
- Surface treatment options
- Flexible packaging solutions

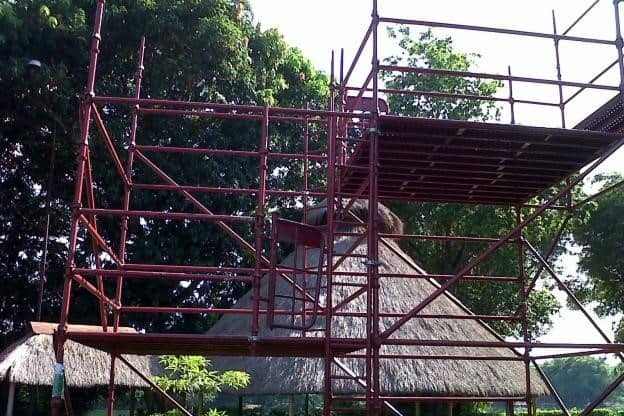

Applications of Cuplock Scaffolding
Cuplock Scaffold Vertical | FAQ
What is a Cuplock Scaffold Vertical?
A Cuplock Scaffold Vertical is the main vertical standard in a Cuplock scaffolding system. It supports the structure and carries loads safely from the scaffold down to the base.
How does the cup locking system work?
Each vertical has fixed bottom cups and movable top cups welded at set intervals. Horizontal ledgers and transoms are secured between the cups, allowing for quick, secure assembly without nuts or bolts.
What sizes are available for Cuplock Scaffold Verticals?
Cuplock scaffold verticals are available in various lengths to fit different project requirements. Standard intervals between cups typically support modular bay sizes, simplifying assembly planning.
What materials are used in Cuplock Scaffold Verticals?
APAC Cuplock scaffold verticals are made from high-quality steel, with strict control over welding and dimensional accuracy to ensure stability and durability on site.
Can Cuplock Scaffold Verticals be used for multiple applications?
Yes. They are suitable for building access, facade scaffolding, birdcage scaffolds, formwork support, and other temporary construction projects that require strong, modular vertical supports.
Related Products
Scaffold Base Jack
Learn More

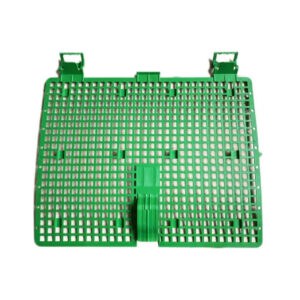

Scaffold Brick Guard
Learn More

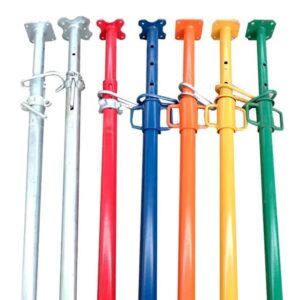

Acrow Prop
